Description

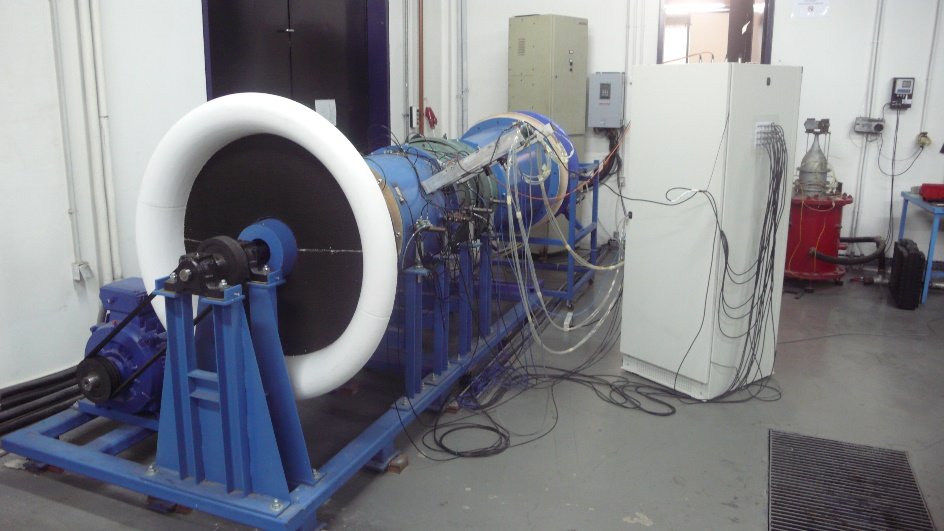

Low speed, single stage Contra-Rotating Axial Compressor test rig
Power 100kW, Speed 3000RPM
Deliverables
Rotating machinery structural calculations, vibration monitoring, balancing, alignment
Contra rotating CFD, performance study
Bellmouth/diffuser and their molds and tooling design and build
Instrumentation – experimental setup and calibration of pressure transducers, 5-hole probes, proximity sensors, accelerometers
Automated Test data acquisition & post processing
Compressor blade geometry reverse engineering and extrapolation
Total facility commissioning, experimentation on flow field and performance mapping
Report link
