Description

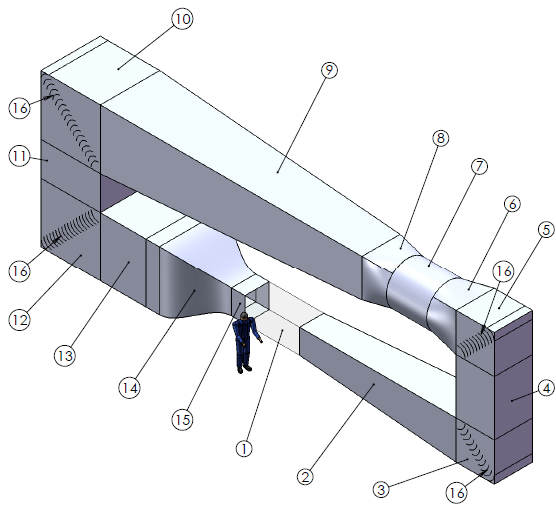

Low speed Aerodynamic Wind Tunnel for anemometers calibration
WT Length 20m, Axial Fan Power 15kW, Test section 1m x 1m, Max Air Speed 20m/s
Deliverables
Aerodynamic Design for ducts sizing and shape
Flow calculations, pressure losses calculations
Stress & vibration FEA of wind tunnel ducts
Water cooled corner vanes design, flow and heat transfer calculations

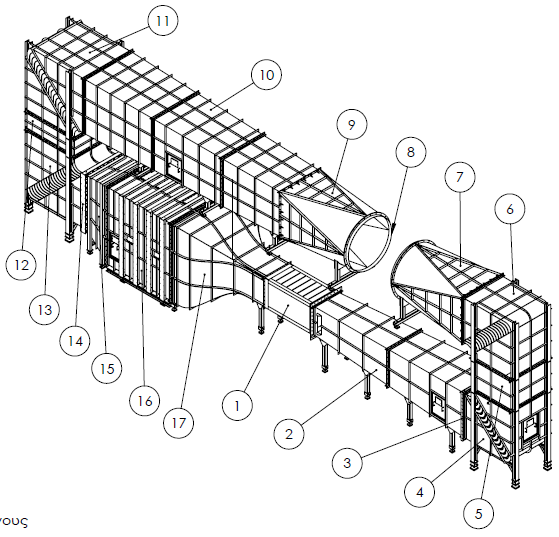

Mechanical Design of the total Wind Tunnel and drafting for manufacturing
Axial fan with motor cooling and outlet guide vanes design
Heat transfer calculations for cooler unit selection
Instrumentation – sensors selection
